Chemical industry:
nitrogen blanketing, replacement, cleaning, pressure transport, chemical reaction agitation, chemical fiber
production protection; synthetic fiber nitrogen-filled binder, wiring and oxidation prevention. Gas purity: 98 ~ 99.99%, gas
pressure 0.5 ~ 0.7MPa.
Coal industry:
Underground explosion-proof and coal-fired fire-fighting, injecting a certain amount of nitrogen into the oxidation
zone or the fire zone to reduce oxygen content to 10% or less, to achieve the purpose of fire prevention. Its function is to
eliminate the danger of gas explosion; prevent natural heat and spontaneous combustion of coal; reduce combustion intensity; Gas
purity: 97% ~ 98%, gas pressure 0. 6MPa.

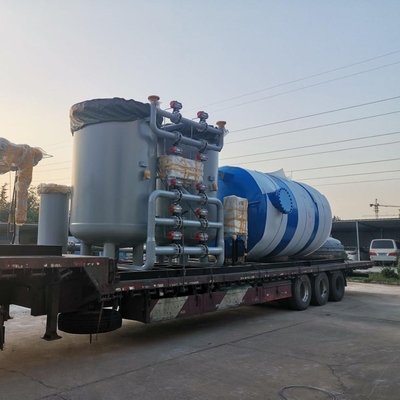

SPECIFICATIONS FOR PNM SERIES N2 GENERATOR | ||||||
Specification | Flow rate | Nm3/hr | 4000 | |||
Purity | % | 99.5 | ||||
Outlet pressure | bar | 6 | ||||
Siemens PLC full automatic controlled operation;
Siemens Smart 700 touch screen human machine interface;
Nitrogen purity, flow rate, pressure display from field instrument. Remote display, monitoring optional, not included;
Manual emergency shutdown push button for emergent stop;
Maintenance reminding, failure analysis, operation tracing functions;
With functions of system failure alarm, purity low alarm.
Unqualified nitrogen automatic discharge function optional, not included;
Designed for more than 8000 hours annual operation;
Name: Carbon molecular sieve
Brand: Kuraray, Takeda,Qiangma
Original: Japan, China
For different flow rate and purity, for different customer considerations, the most suitable CMS are used for each nitrogen generator to achieve lower investment cost and lower operation cost.
High reliability
Proven PSA technologies such as big flange structure, snowstorm filling, gas distribution system, gas speed control technology, unequal pressure balance system,etc make Gamma Gas nitrogen generator more reliable than many other suppliers.
Name: Pneumatic valves
Brand: Bray, Burkert, Omal
Original: USA,Germany, Italy
International famous brand pneumatic valves ensure long time operation reliability. Lifetime of these parts are more than 10 years
Easy installation
Skid structure, fully assembled and test qualified before delivery. When machine reaches site, with simple connection of power supply and gas pipeline, the machine is ready for operation. No need to disassemble and/or re-assembly at site.
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
* Inquiry and consulting support.
* Solution providing.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packaging | ||
Size | 1530 (L) * 1560 (W) * 1400 (D)mm | |
Weight | 1.2 T | |
Packaging Details | The normal package is plywood box. For machines height more than 2.5m, waterproof covers will be used for open top container delivery. | |
Packaging | ||
Size | 1530 (L) * 1560 (W) * 1400 (D)mm | |
Weight | 1.2 T | |
Packaging Details | The normal package is plywood box. For machines height more than 2.5m, waterproof covers will be used for open top container delivery. | |
