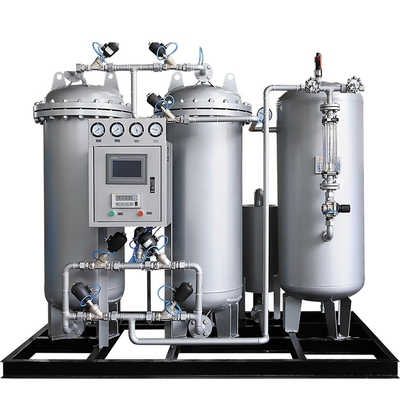

Full Aotomation PSA Nitrogen Generator Unit N2 Gas Generating Equipment Manufacturer Price Nitrogen Circuit For Laser Cutting

1.0 piece
MOQ
Full Aotomation PSA Nitrogen Generator Unit N2 Gas Generating Equipment Manufacturer Price Nitrogen Circuit For Laser Cutting
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location: None
Condition: New
Usage: Nitrogen
Production Rate: 100%
Voltage: 220V/380V
Weight: 2000 KG, Actual Weight
Dimension(L*W*H): Actual Size
Warranty: 1 Year
Key Selling Points: High Productivity
Marketing Type: New Product 2022
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: PLC, Pressure vessel
Product name: PSA Nitrogen Generator
Material: Carbon Steel , Steel
Technology: Pressure Swing Adsorbtion (PSA)
Purity: 95%-99.999%
Capacity: 1-5000NM/H
Certificate: ISO9001 & CE
Feature: Full Aotomation
Power Source: Electricity
Application: Industries and fields requiring nitrogen
Informations de base
Certification: ISO9001 & CE
Conditions de paiement et expédition
Packaging Details: Standard Wooden Package
Supply Ability: 60 Set/Sets per Month
Description de produit

Technical Index

Nitrogen Flow Rate: 1-3000Nm3/h
Nitrogen Purity: 95%-99.9995%
Outlet Pressure: Normal 1-6.5 bar adjustable/ Customized
Dew Point: <-40℃ -45℃


Principles of PSA Nitrogen Generator

PSA technique (Pressure Swing Adsorption, PSA for short):it's a kind of advanced gas separation technology, based on physical
adsorption of gas molecule on the internal surface of adsorbent (porous solid substances), using adsorbents in the same pressure
easy to absorb the high boiling point gas, difficult to absorb low boiling point gas, and under high pressure adsorption amount of
absorbed gas increases, under low pressure adsorption of absorbed gas to reduce the features to achieve gas separation. This
process under pressure adsorption of impurities, under reduced pressure adsorption of impurities, make the adsorbent regeneration,is the PSA cycle.









Our PSA generator is composed of  Air Compressor, Refrigerated Dryer, Filters, Air Buffer Tank, PSA Nitrogen System and Nitrogen Storage Tank.

Based on the actual requirement of user,we will provide the energy-saving PSA Nitrogen Generator solution.

Model
Purity
Capacity
Model
Purity
Capacity
Model
Purity
Capacity
P&T95-1
95%
1
P&T99-1
99%
1
P&T99.5-1
99.5%
1
P&T95-5
95%
5
P&T99-5
99%
5
P&T99.5-5
99.5%
5
P&T95-10
95%
10
P&T99-10
99%
10
P&T99.5-10
99.5%
10
P&T95-20
95%
20
P&T99-20
99%
20
P&T99.5-20
99.5%
20
P&T95-30
95%
30
P&T99-30
99%
30
P&T99.5-30
99.5%
30
P&T95-40
95%
40
P&T99-40
99%
40
P&T99.5-40
99.5%
40
P&T95-50
95%
50
P&T99-50
99%
50
P&T99.5-50
99.5%
50
P&T95-100
95%
100
P&T99-100
99%
100
P&T99.5-100
99.5%
100
P&T95-120
95%
120
P&T99-120
99%
120
P&T99.5-120
99.5%
120
P&T95-150
95%
150
P&T99-150
99%
150
P&T99.5-150
99.5%
150
P&T95-200
95%
200
P&T99-200
99%
200
P&T99.5-200
99.5%
200
P&T95-500
95%
500
P&T99-500
99%
500
P&T99.5-500
99.5%
500
P&T95-800
95%
800
P&T99-800
99%
800
P&T99.5-800
99.5%
800
P&T95-1000
95%
1000
P&T99-1000
99%
1000
P&T99.5-1000
99.5%
1000
P&T95-2000
95%
2000
P&T99-2000
99%
2000
P&T99.5-2000
99.5%
2000
P&T99.9-1
99.9%
1
P&T99.99-1
99.99%
1
P&T99.999-1
99.5%
1
P&T99.9-5
99.9%
5
P&T99.99-5
99.99%
5
P&T99.999-5
99.999%
5
P&T99.9-10
99.9%
10
P&T99.99-10
99.99%
10
P&T99.999-10
99.999%
10
P&T99.9-20
99.9%
20
P&T99.99-20
99.99%
20
P&T99.999-20
99.999%
20
P&T99.9-30
99.9%
30
P&T99.99-30
99.99%
30
P&T99.999-30
99.999%
30
P&T99.9-40
99.9%
40
P&T99.99-40
99.99%
40
P&T99.999-40
99.999%
40
P&T99.9-50
99.9%
50
P&T99.99-50
99.99%
50
P&T99.999-50
99.999%
50
P&T99.9-100
99.9%
100
P&T99.99-100
99.99%
100
P&T99.999-100
99.999%
100
P&T99.9-120
99.9%
120
P&T99.99-120
99.99%
120
P&T99.999-120
99.999%
120
P&T99.9-150
99.9%
150
P&T99.99-150
99.99%
150
P&T99.999-150
99.999%
150
P&T99.9-200
99.9%
200
P&T99.99-200
99.99%
200
P&T99.999-200
99.999%
200
P&T99.9-500
99.9%
500
P&T99.99-500
99.99%
500
P&T99.999-500
99.999%
500
P&T99.9-800
99.9%
800
P&T99.99-800
99.99%
800
P&T99.999-800
99.999%
800
P&T99.9-1000
99.9%
1000
P&T99.99-1000
99.99%
1000
P&T99.999-1000
99.999%
1000
P&T99.9-2000
99.9%
2000
P&T99.99-2000
99.99%
2000
P&T99.999-2000
99.999%
2000
Our PSA Nitrogen Generator has many advantages, such as high purity, simple process, full automation, low operating cost and so
on. And it is widely used in many industry, such as Food packing, Food storing, Electric & Electronic industry, Petrogas & Oil
field, Chemicals & Petro-chemicals, Coal-mine, Metallurgy, Pharmacy, SMT, Fire-resistance, lab, Air driving, and so on.

All systems are designed for un-attended operation and automatic Nitrogen demand adjustment.

The lifetime is long and it’s easy replace and maintain for the compressor air purification components.

The output flow of exit is large and the pressure of exit can adjust in the a setting range.

The Nitrogen purity can reach to > 99.99% without other nitrogen purification equipment. If add the nitrogen purification
equipment, the purity can reach to>99.999%.

Low investment and energy consumption.

Simple operation and maintenance.

Petroleum gas & Oil field,Electronic industry,Metallurgy,Pharmacy,Fire-resistance,Air diving,Coal-mine,Food packing and
storing,SMT,Lab and so on.

Q: Are you trading company or factory?
A: We are professional manufacturer in the field of air separation!

Q: What is the terms of payment?
A: T/T, L/C etc.

Q: How long is your delivery time?
A: Generally it is 10-50 working days depending on your order.

Q: How to get a prompt quotation?
A: When you send us inquiry, please kindly tell us the below technical information.
1) N2 Flow rate: ____Nm3/h
2) N2 Purity: ____%
3) N2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.

Q: What’s the order process?
A: 1). Inquiry---provide us all clear requirements.
2). Quotation---official quotation form with all clear specifications.
3). Contract confirmation---provide correct contract details.
4). Payment terms
5). Production
6). Shipping
7). Installation and commissioning
