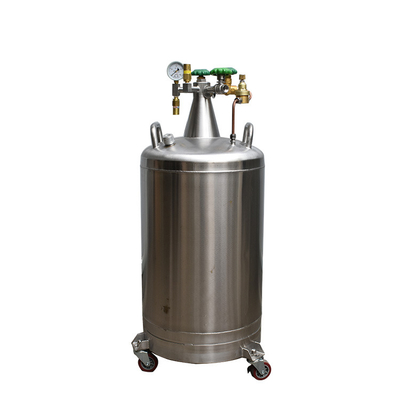

Safety Duarble YDZ-100 Portable Cryogenic Tank 100 Liter Large Capacity Liquid Nitrogen Containers

1 Piece
MOQ
$1,600.00(1 - 9 Pieces) $1,500.00(10 - 49 Pieces) $1,400.00(>=50 Pieces)
Prix
Safety Duarble YDZ-100 Portable Cryogenic Tank 100 Liter Large Capacity Liquid Nitrogen Containers
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Condition: New
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Energy & Mining, Food & Beverage Shops, Cryogenic industry
Max Working Pressure(MPa): 0.1 MPa
Capacity: 100 L
Dimension(L*W*H): can customzied
Weight: 24-650kg
Warranty: 1 Year
Key Selling Points: High Productivity
Showroom Location: None
Product name: YDZ-100 liquid nitrogen containers
Material: Stainless Steel Carbon Steel
Application: Chemcial Storage
Usage: Store, Ship
Volume: 15-1000L
Type: Customerized
Working pressure: 0.1MPa
Infusion volume: ≥8L/Min
Feature: Security Duarble Portable
Function: Widely Used
After-sales Service Provided: Online support
After Warranty Service: Online support
Local Service Location: None
Certification: ISO9001
Informations de base
Certification: ISO9001
Conditions de paiement et expédition
Packaging Details: 1.plastic bubbles 2.polystyrene foam sheet 3.carton
Supply Ability: 100 Piece/Pieces per Month
Description de produit
Products Description
YDZ-100 100 liter big capacity liquid nitrogen containers cryogenic tank
The self-pressurized liquid nitrogen tank gasify a small amount of liquid nitrogen to increase the pressure in the liquid nitrogen tank, thereby discharging the liquid in the liquid nitrogen tank. It is safe to use, with continuous pressurization, uninterrupted drainage, convenient movement, simple operation and long-term durability. Widely used in abrasive industry, animal husbandry, semiconductor, food industry, low temperature industry, aerospace, military, etc.

Product Paramenters
YDZ-100 100 liter big capacity liquid nitrogen containers cryogenic tank
Product number
Geometric volume       （L）
Effective volume（L）
Out Diameter （mm）
High (mm)
Empty Weight  (KG)
Full weight (KG)
Working pressure (Mpa)
Daily evaporation rate(%)
Infusion volume   (L/Min)
YDZ-15
16.5
15
350
600
22
34
≤0.1
12.7
≥2
YDZ-30
31.5
30
455
750
35
59
≤0.1
2.7
≥2
YDZ-50
55
50
455
1000
45
90
≤0.1
1.8
≥4
YDZ-100
110
100
505
1270
68
148
≤0.1
1.3
≥6
YDZ-150
165
150
555
1450
100
220
≤0.1
1.2
≥8
YDZ-175
185
175
555
1600
120
260
≤0.1
1.1
≥8
YDZ-200
220
200
600
1600
125
285
≤0.1
1.1
≥8
YDZ-300
330
300
800
1600
300
432
≤0.1
1.0
≥10
YDZ-500
550
500
1000
1750
335
739
≤0.1
1.1
≥12
YDZ-800
880
800
1300
1830
520
1160
≤0.1
1.0
≥15
YDZ-950
1045
950
1400
1850
650
1418
≤0.1
1.0
≥20
YDZ-100W
110
100
95
175
≤0.1
2.0
YDZ-200W
220
200
1500*600
825
160
320
≤0.1
1.7
≥8
YDZ-320W
330
320
1800*910
1120
225
483
≤0.1
1.5
≥8
YDZ-500W
550
500
2000*1010
1250
350
754
≤0.1
1.8
≥10
YDZ-950W
1045
950
2000*1600
1750
715
1483
Product Structure

YDZ-100 100 liter big capacity liquid nitrogen containers cryogenic tank

The self-pressurized liquid nitrogen tank is made of high-quality stainless steel, and the container is equipped with a
pressure-increasing system, which can generate pressure and continuously discharge liquid.

Part picture of liquid nitrogen container

The control system of the container is mainly composed of: liquid valve; booster valve or pressure building valve; vent valve, safety valve; liquid level gauge; pressure gauge; independent braked casters.
Details Images
YDZ-100 100 liter big capacity liquid nitrogen containers cryogenic tank
Instructions
YDZ-100 100 liter big capacity liquid nitrogen containers cryogenic tank
Inlet Liquid: When filling liquid from the inlet / drain valve and filling the container, please first open the vent valve, connect the infusion metal hose to the inlet / drain valve, open the inlet / drain valve, then you can start from The liquid medium is added to the inlet / drain valve. After the liquid is filled, the inlet / drain valve is closed. Liquid level indication: By observing the yellow indicator ring in the transparent display, you can directly read the change of the liquid level Storage: When you use this container to store liquid medium, please close the inlet / drain valve and pressurization valve, you must open the vent valve Transportation: When you use this container to transport liquid medium, the opening and closing state of each valve should be the same as that during storage, and please fix the wheels under the container seat ring, and use the rope to fix the container to the car reliably. Drain Liquid: Close the vent valve, open the booster valve, observe the pressure gauge, and when the pressure rises to 0.05MPa (0.5kg / cm2), open the drainage valve to allow continuous infusion.
