Caractéristiques

Applicable Industries: Food & Beverage Factory, Chemical Engineering, Oil and gas engineering, Medicine, Gold ore, Energy and environmental protection

Showroom Location: Canada, Germany, Indonesia, India, Russia, Malaysia, Australia, None

Condition: New

Usage: Nitrogen

Production Rate: 100%

Voltage: 220V/50HZ;380V/ 50HZ

Weight: Actual

Dimension(L*W*H): Actual

Warranty: 3 years

Key Selling Points: energy conservation,environment protection,After sale quality

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 3 years

Core Components: PLC, Pressure vessel, CMS

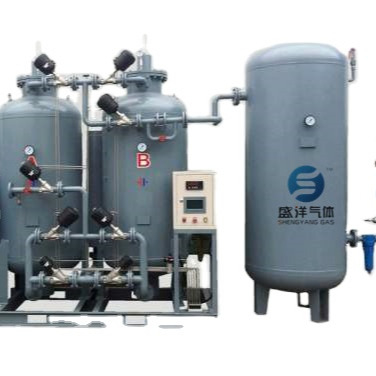

Product name: SYN Type Pressure Swing Adsorption Nitrogen Generator

Purity: 95~99.9995%

Technology: Pressure Swing Adsorbtion (PSA)

Dew point: - 45 â„ƒ ~ -60 â„ƒ

Nitrogen flow rate: 1-3000Nm3/h

Nitrogen Pressure: 0.05~1.0MPa

Local ServiceÂ Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea

After-sales Service Provided: Video technical support, Free spare parts, Online support, Field maintenance and repair service

Certification: ISO9001:2015

Informations de base

Certification: ISO9001:2015

Conditions de paiement et expédition

Packaging Details: From the engineer's design, then to the production, installation and debugging, and then to the packaging parts, to the final delivery, we do 100% of our own hands.

Supply Ability: 600 Set/Sets per Month

Description de produit

Process flow chart

Operating Principles

Pressure swing adsorption nitrogen equipment is the carbon molecular sieve as adsorbent, using the principle of pressure swing adsorption to obtain nitrogen equipment. Under A certain pressure, the use of oxygen in the air, nitrogen in carbon molecular sieve adsorption on the surface of the differences, namely carbon molecular sieve on the diffusion of oxygen adsorption than nitrogen, through programmable control of pneumatic valve opening and closing, alternate cycle, achieve A, B two tower pressure adsorption and vacuum stripping process, complete separation of oxygen and nitrogen, get high purity nitrogen.

Product features

1.The whole machine runs reliably
The organic combination of advanced nitrogen production process design, patented gas distribution structure, patented composite bed structure adsorption tower, unique carbon molecular sieve filling process, special carbon molecular sieve protection measures and automatic cylinder compression compensation device makes the normal service life of nitrogen production machine reach more than 10 years.
2. Continuous production is stable
The advanced PLC control system and the imported pneumatic valve with a switching life of 3 million times are adopted to ensure the continuous and reliable operation of the device with high efficiency and durability.
3.Nitrogen is stable in quality
Nitrogen gas flow and pressure adjustable adsorption process, equipped with automatic interlock vent device, to ensure nitrogen yield purity, pressure long-term stability.
4.Perfect after-sales service
Perfect after-sales service system, quick response mechanism and marketing service network distribution, to ensure that every customer long-term use at ease.

Product Description

Model	SYN
Function	Producing nitrogen gas with designed flow rate, purity and outlet pressure
Capacity	1~3000Nm³/h
Pressure	0.05~1.0MPa(adjustable、Superchargable)
Purity	95%~99.9995%
Dew Point	-45℃~-60℃(under normal pressure)
Features	1.Intelligent, automatic operation, remote/automatic control; 2. Special air distribution system, flow control, automatic compaction technology and other technologies ensure stable operation; 3.Nitrogen purity, pressure, flow rate on-line monitoring; 4.Nitrogen purity, flow rate are adjustable, meeting customer flexible needs;;

Technical index

Description of 95-99.9995% purity Pressure Swing Adsorption PSA Industry Nitrogen generator（Non standard customization）

Specification and model	Purity (%)	Nitrogen production (Nm³/h)	Pressure（MPa）	Dew Point Boundary(℃）
SYN95%	95%	5-3500	0.05 ~ 1.0 MPa (adjustable、Superchargable)	-45℃ ~ -60℃ (under normal pressure)
SYN96%	96%	5-3500
SYN97%	97%	5-3000
SYN98%	98%	5-3000
SYN99%	99%	5-2500
SYN99.5%	99.5%	5-2500
SYN99.9%	99.9%	5-2000
SYN99.99%	99.99%	5-1500
SYN99.995%	99.995%	5-1000
SYN99.999%	99.999%	5-500
SYN99.9995%	99.9995%	5-300

Details Images

Production Process

Company Profile

Packing & Delivery

FAQ

1. Are you manufacturer or Trade Company?
We are the manufacturer of nitrogen Generator, founded in 2005
2. What's the order nitrogen generator process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.
d. Contract confirmation---provide correct contract details.
e. Payment terms--- Negotiable.
f. Production---mass production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
h. Installation and commissioning

3.What terms of payment you use?
T/T, L/C etc.
4.Project Location:

How to get a prompt quotation of nitrogen Generator?

When you send the inquiry to us, pls kindly send it with below technical information.

N2 Flow Rate	Nm3/hr( or How many cylinders do you want to fill per day(24hours))
N2 Purity	%
N2 Discharge Pressure	Bar or MPa
Voltages And Frequency	V/PH/HZ
The Dew Point	℃
